How to measure the illuminance of a led street light?

As a supplier of LED street lights, I understand the importance of accurately measuring the illuminance of these lights. Illuminance is a critical factor in determining the effectiveness and efficiency of LED street lighting systems. In this blog post, I will share some insights on how to measure the illuminance of an LED street light.

195(001)

Understanding Illuminance

Before we delve into the measurement process, it's essential to understand what illuminance is. Illuminance refers to the amount of light that falls on a surface. It is measured in lux (lx), which is defined as one lumen per square meter. In the context of street lighting, illuminance is crucial for ensuring adequate visibility and safety for pedestrians and motorists.

Factors Affecting Illuminance

Several factors can affect the illuminance of an LED street light. These include:

Luminous Flux: This is the total amount of light emitted by the LED street light. Higher luminous flux generally results in higher illuminance.
Mounting Height: The height at which the street light is mounted affects the spread of light. A higher mounting height may result in a wider spread of light but lower illuminance at the ground level.
Luminaire Design: The design of the LED street light luminaire can significantly impact the distribution of light. Well-designed luminaires can direct light more effectively, increasing illuminance in the desired areas.
Distance from the Light Source: Illuminance decreases as the distance from the light source increases. This is known as the inverse square law.

Measuring Illuminance

To measure the illuminance of an LED street light, you will need a light meter, also known as a lux meter. Here are the steps to follow:

Choose the Right Location: Select a representative area where you want to measure the illuminance. This could be a section of the street, a parking lot, or a sidewalk.
Set Up the Light Meter: Ensure that the light meter is calibrated correctly. Place the light meter at the desired height and orientation. For street lighting measurements, the light meter is typically placed at a height of 1 meter above the ground.
Take Multiple Readings: To get an accurate measurement, take multiple readings at different points within the selected area. This will help account for any variations in illuminance.
Record the Readings: Record the illuminance readings in lux. Make sure to note the location and height at which each reading was taken.
Calculate the Average Illuminance: Once you have taken all the readings, calculate the average illuminance by adding up all the readings and dividing by the number of readings.

Using Simulation Software

In addition to physical measurements, simulation software can also be used to estimate the illuminance of an LED street light. Simulation software allows you to model the lighting system and predict the illuminance levels based on various parameters such as luminaire type, mounting height, and layout. This can be a useful tool for designing and optimizing street lighting systems.

Importance of Accurate Illuminance Measurement

Accurate illuminance measurement is essential for several reasons:

Safety: Adequate illuminance is crucial for ensuring the safety of pedestrians and motorists. By measuring the illuminance, you can ensure that the street lighting system provides sufficient light for safe navigation.
Energy Efficiency: Measuring illuminance can help you optimize the lighting system to reduce energy consumption. By adjusting the luminaire type, mounting height, and layout, you can achieve the desired illuminance levels while minimizing energy usage.
Compliance: Many local regulations and standards specify minimum illuminance requirements for street lighting. By measuring the illuminance, you can ensure that your lighting system complies with these requirements.

Our LED Street Lights

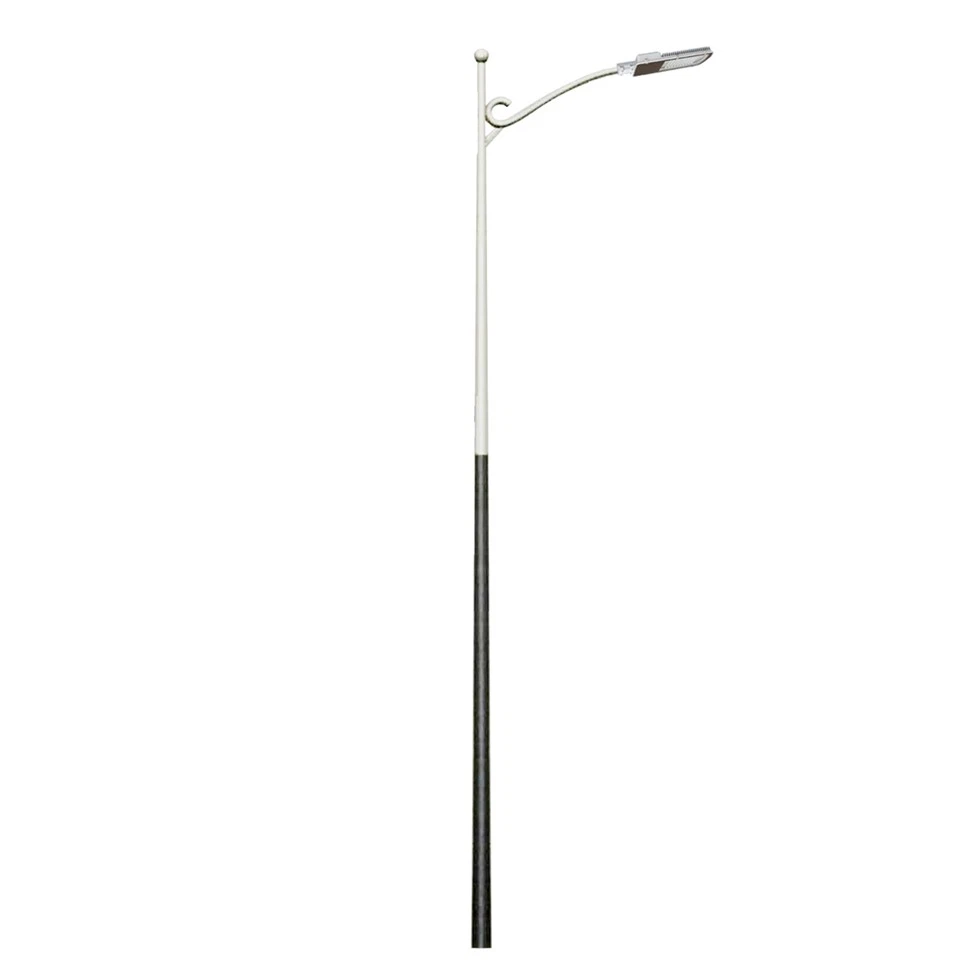

At our company, we offer a wide range of high-quality LED street lights, including the High Quality Led Street Light, 12v Dc Led Street Light, and Double Arm Street Light. Our lights are designed to provide high illuminance levels while being energy-efficient and durable.

Conclusion

Measuring the illuminance of an LED street light is an important step in ensuring the effectiveness and efficiency of the lighting system. By understanding the factors that affect illuminance and following the proper measurement procedures, you can accurately assess the performance of your street lighting. If you are in the market for high-quality LED street lights, we invite you to contact us for more information and to discuss your specific requirements. We look forward to working with you to provide the best lighting solutions for your needs.
